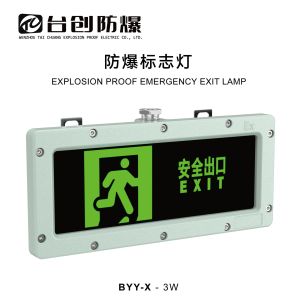

Aluminum explosion proof emergency lamp exit signs 5w with atex
exit sign light
Product details:
1,Cree LED source
2, Osram driver for five years warranty
3,Anticorrosion grade wf2
4,Explosion proof grade ExdⅡCT6
5,start-up time less than 0.2S
Features:
1. The radiator is designed to be made of special cast aluminum
alloy by die-casting, and its surface is sprayed with high voltage
static electricity;
2. Exposed stainless steel fasteners with high corrosion
resistance;
3. Separate structure of light source cavity and power supply
cavity;
4. Specially designed light distribution system, with high light
utilization rate, reasonable light distribution, uniform
illumination and no glare;
5. The junction box is of labyrinth structure, equipped with
silicone rubber sealing strip, firmly pasted, and of high
protection grade;
6. Toughened glass made of high-strength material, with strong
impact resistance, thermal shock resistance and high light
transmittance;
7. The constant current power supply has wide voltage input and
constant current output, and has the protection functions of shunt,
surge prevention, overcurrent, open circuit, open circuit, high
temperature, anti electromagnetic interference, etc;
8. The combined emergency device can be equipped according to the
use requirements. When the power supply is cut off, it can
automatically switch to the emergency lighting state;
9. Cable routing.
Specification:
| Specification |
| Ex Marking | II 2GD Ex d e IIC T6 Gb |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2, Group A,B,C,D; |
| IP Degree | IP65 / IP54 |
| Charging time | 24 hours |
| Input voltage | AC220V / DC24V / DC36V |
| Wattage | 3W |
| Emergency time | 90mins |
| Conduit entries | G3/4 |
| Mounting style | wall, bracket, ceiling |
| Weight | 2kgs |
Application.
Suitable for dangerous places in zones 1 and 2, explosive gas
environments of Class II A, II B and II C, mixing temperature of
explosive gases: T1~T5, widely used in dangerous environments such
as petroleum, chemical industry, militaryindustry, medicine, mine,
working and scene lighting of dangerous places such as offshore oil
platforms, oil tankers, etc.
Company introduction:
Changzhou JUJUN Ex-proof company is a professional LED lighting
manufacturer and it founded in 2011, Specialized in explosion proof
led lights, strobe and sounder light, plug and sockets, switches,
push buttons, exhuast fan, axial flow fan and so on.
There are 30,00 square meters of factory buildings. With over 10
years of lighting experience, profound industry knowledge in the
field of the explosion proof light, appliances etc.
FAQ:
A:Are you factory or trading company?Q:We are a factory and provide OEM services. Our main products are
explosion-proof lightings, explosion-proof distribution box,
explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and
anti-corrosion&dustproof&waterproof lights.
A:What certificates do you have?
Q:We have passed ATEX, IECEx, and with a lot of National Patents.
A:What place are your products used in?
Q:They are widely used in petroleum chemical, aerospace, coal
electrical power, railway, metallurgy, shipbuilding, medicine,
marine, wine-making, fire fighting, municipal and other industries.
A:Can I have a sample order?
Q:Yes, we welcome sample orders to test and check quality. Mixed
samples are acceptable.
A:Can youaccept customized?
Q:Yes. Please inform us and confirm the design firstly based on our
sample.
